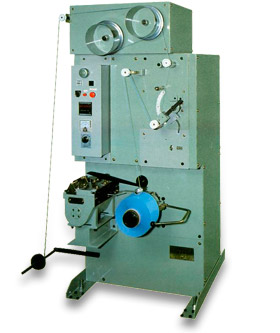

Tapes Winder EFT

Specially designed to wind flat materials like tape by means of bobbin traverse system. On conventional winding process, the wind roll of flat materials is cut at a certain width by slitting machine and wound onto a large roll like a disc (record) on winding machine. However, the cut materials are apt to be distored, bent or wrinkled during the winding.

Outline spec

Type EFT
Yarn type Various type of tapes
Tape width: 3-30mm
Unrolling speed Max.100m/min
Winding bobbin Various type of bobbins
Traverse length 55-155mm, 150-250mm
Winding package Max.400mmφ
Control device dancer roller tension system
Drive system Variable speed type AC motor: 100W
Machine construction Single spindle, or multiable spindles
Electrical device 3 phase,200/220V
50/60HZ
※Step-down Toransformer will be reguired when using the machines at
the aria of Different power supply.
