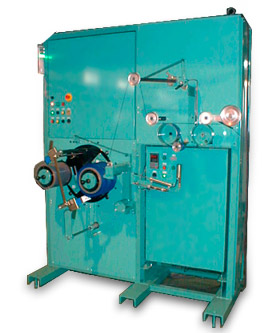

Re-Winders for tapes EKTW-A-VC EKTW-A-VC

A bobbin traverse system take-up winder to take-up covered wires in pail barrel shapes in tune with the supplying speed from the supplying machine.

Outline spec

Model EKTW-A-VC
Yarn type Carbon fiber(1000-12000), covered wires(φ1-4mm), etc.
Unrolling speed Max. 300m/min
Winding package barrel
Traverse length 6inch(152mm),8inch(203mm),10inch(254mm),12inch(305mm)
Winding package Max.φ400mm
Control device dancer roller tension system
Pressure 9.8-29.4N(1000-3000gf) than shorter
Drive system Variable speed motor: KS100W, Individual drive
Machine construction 3rows×Max.5 lines(one machine)
Number of frame 1 frames/1 machine
Number of bobbin 2bobbin/1 frame
Electrical device 3 phase,200/220V, 50/60HZ
※Step-down Toransformer will be reguired when using the machines at
the aria of Different power supply.
