SSPプレシジョンワインダ SSP

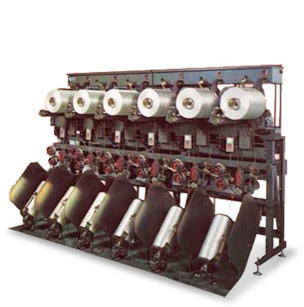

Taking into consideration all the demands of the natural fiber and synthetic fiber industries, Kamitsu designed the SSP winder to be able to wind filament yarn from 15-500 deniers, and this speed winding capability for even large size packages greatly increases production capacity.

Outline spec

Type SSP
Yarn type Polyester, nylon,
Winding Speed Max.800m/min
Shape of package square end , cone
0-00’~3-51’
Winding weight Max.15.4kg
Traverse length 8inch (203mm),10inch (254mm),12inch(305mm)
Size of full package Max.300mmφ
Motor Introduction motor :200W
Machine construction 6,12,18,24,30,36,42,48 frame/ 1machine
Electricity device 3phase, 200/220V, 50/60Hz.
※Step-down Toransformer will be reguired when using the machines at
the aria of Different power supply.
