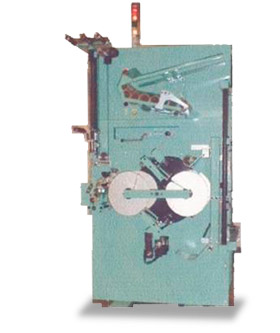

Tapes Winder PFT

Two spindles turret type Take-up Winder equipped with auto transfer function and auto doffer, which is applicable for banding tape.

Outline spec

Type PFT-A
Yarn type Polyethylene, Polypropylene , Flat tape
Tape width:20-30mm
Unrolling speed Max.200m/min
Winding package shape Frange roller
Winding bobbin TypeFrange roller bobbin
ID 51φ×175mm, 180( length)
Winding length 175mm, 180mm
Winding package Max.250mmφ
Unwinding tension early tension3.92-9.8N(400-1000gf) than shorter
control devicedancer roller tension system
Pressure 39.2-98N(4000-12000gf) than shorter
Drive system geared motor : Variable speed type AC motor: 400W
Air pressure 0.5-0.6MPa(5-6kgf/cm2)
Number of frame 1 frame/1 machine
Number of frame 2 bobbins/1 frame
Electrical device 3 phase,200/220V, 50/60HZ
※Step-down Toransformer will be reguired when using the machines at
the aria of Different power supply.
