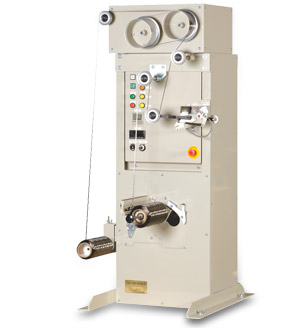

Industrial material winder EKTW-C-FR

Feed rollers and Yarn length control devices are installed as standard equipment. Coated threading elements and sophisticated winding device realize perfect packages free from damages. Refined and accurate tension control achieves perfect winding on versatile fibers.

Outline spec

Type EKTW-C-FR
Yarn type Carbon fiber etc
Number of filaments 1000-24000
Unrolling speed Max.240m/min
Winding package shape square end cheese (0-00 E
Winding bobbin Typepaper cone,
ID 76ρE?E80mm
Traverse length 10inch(254mm)
Winding package Max.250mmρE/td>
Unwinding tension early tension0.049-2.94N(5-300gf) than shorter
control devicedancer roller tension system
Pressure 9.8-29.4N(1000-3000gf) than shorter
Drive system Variable speed type AC motor: 100W
Electrical device 3 phase,200/220V, 50/60HZ
※Step-down Toransformer will be reguired when using the machines at
the aria of Different power supply.
