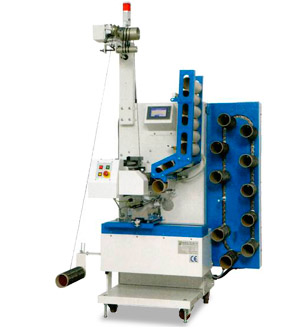

Industrial material winder KTAW

Full automatic control device by computer system. All figure are set and displayed on screen. And automatic Bobbin change.

Specification

Type KTAW
Yarn type Carbon Fiber, Aramid fibers, Ceramic fibers, Glass fibers, etc.
Shape of package square end cheese,
0-00’
Traverse length 254mm
Size of full package Max.145mmφ
Winding bobbin D76~77.5×OD83×L280mm
Winding speed Constant speed of 50-150m/min to be inputted digitally though monitor screen
Winding tension By tension roller(79.5mm in dia) to be controlled by hysteresis tensioning brake 0.5~12N(50~1200g)
Pressure 0.5~4kgs.
Bobbin holder Automatically functioned spindles-less type
Pwoer supply AC200V, 50/60Hz.
Compressed air 0.4-0.6MPa(5-6kgf/cm2)
※Step-down Toransformer will be reguired when using the machines at
the aria of Different power supply.
