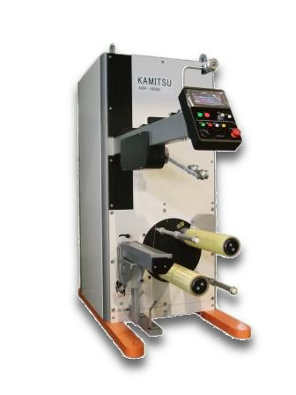

KAMITSU ARK-1000D is developed as the new generation machine for High Perfomance Fibers.
| Type | ARK-1000D |
| Yarn type | Hight performance fibers. |
| Number of filaments | 170dtex. - 8,000dtex. |
| Unrolling speed | Max.1,000m/min. |
| Winding package shape | Square-end..（0°00′） |
| Winding bobbin | Typepaper tube |
| SIZEφ93mm.（ID） x φ108mm.（OD） x 215mmL or 290mmL | |
| Traverse length | 190mm or 254mm. |
| Winding package | Max.800mmφ |
| Winding weight | Max.10kg/cop. |
| Winding tension | early tension30cN - 1,000cN. |
| control deviceDancer roller controls tension and speed. | Pressure | early tension100-600cN/2cop（1,000-6,000gf/2cop）than shorter |
| control deviceCompressed air.(by mean of regulator.) | |
| Drive system | AC motor, 1.5kw. X 2sets. Individual drive |
| Traverse system | Scroll cam traverse system. |
| Control system | Central control system through control panel. |
| Parameters to be Control through panel | Winding ratio, Full Package alarm. |
| Air pressure | 0.5-0.6MPa（5-6kgf/cm2) |
| Power supply | 3 phase 200V、50Hz/60Hz. |
| * Step-down Toransformer will be reguired when using the machines at the aria of Different power supply. |
|
