HOME / Product information / Take up winder EKTW-C（EKTW-C Series）

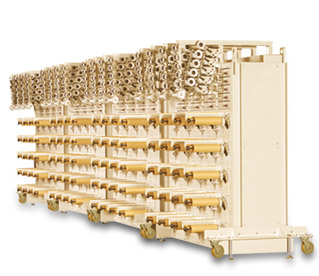

The most common type of take-up winder and covers high performance fibers to regular types of synthetic fiber. Elaborated mechanism achieved high-quality package.．
| Model | EKTW-C |
| Yarn applicable | Carbon fiber and others |
| Yarn denier (Filament) | 1000-24000 filament |
| Winding speed | Max. 200m/min |
| Shafe of package | Square end cheese (0°00’) |
| Winding Tube | TypePaper tube etc |
| SizeIDφ76mm(Standard) | |
| Traverse length | 6inch（152mm），8inch（203mm），10inch(254mm） |
| Package diameter | Max.φ250mm |
| Tension | Winding Tension50-1000g with tension release |
| Control SystemDancer roller tension system | |
| Contact pressure | 0.8~3kg with pressure release |
| Driving system | Variable speed type AC motor 100W Individual drive on each spindle |
| Constraction frame | 5 head high 4lines frame |
| Electricity to Winder | 3phase 200V 50/60Hz |
| ※Step-down Toransformer will be reguired when using the machines at the aria of Different power supply. |
|
