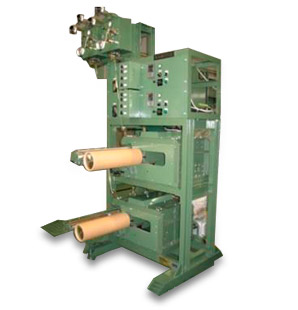

Take up winder EKTL-17(20)D

EKTL is mainly used for large package winding including precursor of PAN carbon fiber and also heavy industrial yarn. Many models are available depending on package size.

Outline Spec

Type EKTL-17(20)D
Yarn type thick denier filament etc.
Number of filaments 1000-30000 Denier (3000-48000)
Unrolling speed Max.400m/min
Winding package shape square end cheese roller (0-00')
Winding bobbin Typepaper cone
SIZE133φ ( ID ) × 446, 550mm( length) standard
Traverse length 17inch(432mm), 20inch (508mm)
Winding package Max.420mmφ(17inch), Max.500mmφ(20inch)
Winding weight Max.75kg(17inch),Max.90kg(20inch)
Unwinding tension early tension0.98-19.6N(100-2000gf) than shorter
control devicedancer roller tension system, PID control device
Pressure 39.2-98N(4000-10000gf) than shorter
Drive system 3 phase motor : 1.5kW
Individual drive
Machine construction 1,2 rows × 1line (one machine)
Air pressure 0.5-0.6MPa(5-6kgf/cm2)
Electrical device 3 phase,200/220V, 50/60HZ
* Step-down Toransformer will be reguired when using the machines at
the aria of Different power supply.
