HOME / Product information / Take up winder EKTW-CA 050S（EKTL-C Series）

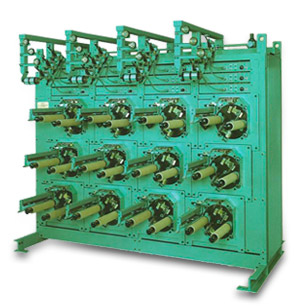

This is Take up winder equipped with function of auto bobbin change, which is developed to contribute for labor saving, space saving in the fields of high-tech industries etc. This machine offers wide range of application for winding high performance fiber, ceramic fiber etc. and industrial materials like tire-cord etc.
| Type | EKTW-CA 050S |
| Yarn type | Carbon fiber, tire code, etc. |
| Number of filaments | 1000-24000 |
| Unrolling speed | Max.1000m/min |
| Winding package shape | square end cheese roller(0-00’) |
| Winding bobbin | Type paper cone |
| ID 76φ(standard) | |
| Traverse length | 6inch(152mm),8inch(203mm),10inch (254mm) |
| Winding package | Max.250mmφ |
| Unwinding tension | early tension0.49-9.8N(50-1000gf) than shorter |
| control devicedancer roller tension system | |
| Pressure | 9.8-29.4N(1000-3000gf) than shorter |
| Drive system | Variable speed motor:：KS100W Individual drive |
| Machine construction | 3rows×Max.5 lines(one machine) |
| Number of frame | 2 frames/1 bobbin |
| Electrical device | 3 phase,200/220V, 50/60HZ |
| ※Step-down Toransformer will be reguired when using the machines at the aria of Different power supply. |
|
