HOME / Product information / Take up winder EKTW-CA-2cop（EKTL-C Series）

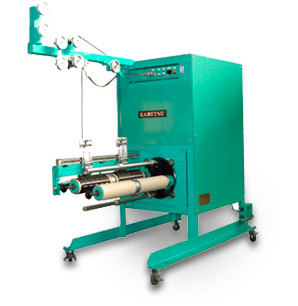

This is Take up winder with a 2cop function and an auto bobbin chande specifically developed to achieve double productivity while saving space. This machine offers practical, high speed winding (max.1,000m/min.) with a wide range of applications which includes winding metallic fiber, glass fiber, and industrial materials like Aramid fiber.
| Model | EKTW-CA-2cop |
| Yarn type | Carbon fiber, tire code, etc. |
| Number of filaments | 1000-24000 |
| Unrolling speed | Max. 80m/min |
| Winding package shape | square end cheese (0-00’) |
| Winding bobbin | Typepaper cone |
| ID 76φ | |
| Traverse length | 10inch(254mm) |
| Winding package | Max.240mmφ |
| Unwinding tension | early tension 0.049-2.94N(5-300gf) than shorter |
| control devicedancer roller | |
| Pressure | 7.8-29.4N(1000-3000gf) than shorter |
| Drive system | Variable speed motor: KS200W Simultaneous drive |
| Machine construction | 3spindles |
| Electrical device | 3 phase,200/220V, 50/60HZ |
| ※Step-down Toransformer will be reguired when using the machines at the aria of Different power supply. |
|
