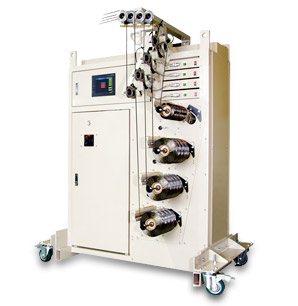

Take up winder EKTW-CX

Control panel , centralized settings(winding tension, winding pressure, winding speed, wind ratio and length settings) and Monitoring function(Length, operation time, number of packages produced, yarn breakage, down time, etc)are available. Also can communicate with PC through the external out-put terminal.

Outline Specification

Model EKTW-CX
Yarn applicable Carbon fiber and others
Yarn denier (Filament) 1000-24000 filament
Winding speed Max. 200m/min
Shafe of package Square end cheese (0°00’)
Winding Tube TypePaper tube etc
Size IDφ76mm(Standard)
Traverse length 6inch(152mm),8inch(203mm),10inch(254mm)
Package diameter Max.φ250mm
Tension Winding Tension50-1000g with tension release
Control SystemDancer roller tension system
Contact pressure 1~3kg with pressure release
Driving system Variable speed type AC motor 100W
Individual drive on each spindle
Constraction frame 5 head high 4lines frame
Electricity to Winder 3phase 200V 50/60Hz
※Step-down Toransformer will be reguired when using the machines at
the aria of Different power supply.
