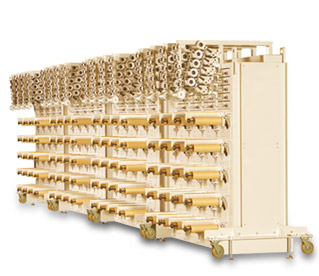

HOME / Product information / Take up winder EKTW-CL（EKTW-C Series）
Based on EKTW-C, full functioned winding system inspires the next innovation of the fiber. This can wind ratio maximum diameter of 350 mm.
| Model | EKTW-CL |
| Yarn applicable | Carbon fiber and others |
| Yarn denier (Filament) | 1000-24000 filament |
| Winding speed | Max. 150m/min |
| Shafe of package | Square end cheese (0°00’) |
| Winding Tube | TypePaper tube etc |
| Size IDφ76mm(Standard) | |
| Traverse length | 6”(125mm) 8”(203mm) |
| 10inch(254mm） | |
| Package diameter | Max.φ350mm |
| Approx. Weight of Full Package | Max. 46.6kg(17”), Max. 80kg(20”) |
| Tension | Winding Tension50-1000g with tension release |
| Control SystemDancer roller tension system | |
| Contact pressure | 0.8~3kg with pressure release |
| Driving system | Variable speed type AC motor 100W Individual drive on each spindle |
| Constraction frame | 5 head high 4lines frame |
| Electricity to Winder | 3phase 200V 50/60Hz |
| ※Step-down Toransformer will be reguired when using the machines at the aria of Different power supply. |
|
