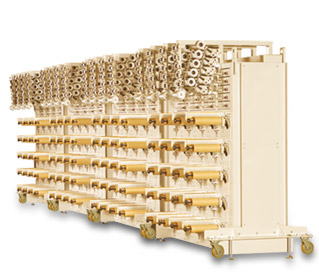

Take up winder EKTW-CLL

Based on EKTW-C, full functioned winding system inspires the next innovation of the fiber. This can wind ratio maximum diameter of 350 mm.

Outline Spec

Model EKTW-CLL
Yarn type Carbon fiber
Number of filaments 1000-24000
Unrolling speed Max. 150m/min
Winding package shape square end cheese (0-00')
Winding bobbin Type paper cone
Size ID φ76mm(Standard)
Traverse length 6inch(152mm), 8inch(203mm),10inch(254mm)
Winding package Max. φ350mm
Pressure 7.8-29.4N(800-3000gf) than shorter
Drive system Variable speed motor : KS100W
Simultaneous drive
Machine construction 3- 4spindles
Electrical device 3 phase,200/220V, 50/60HZ
* Step-down Toransformer will be reguired when using the machines at
the aria of Different power supply.
