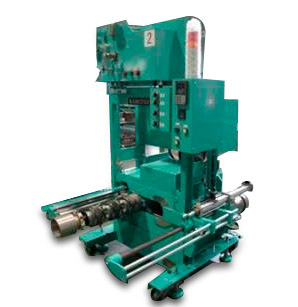

EKTL is mainly used for large package winding including precursor of PAN carbon fiber and also heavy industrial yarn. Many models are available depending on package size.．
| Type | EKTL-17(20)D-135 |
| Yarn type | thick denier filament etc. |
| Number of filaments | 1000-30000 Denier (3000-48000) |
| Unrolling speed | Max. 400m/min |
| Winding package shape | square end cheese roller (0-00’) |
| Winding bobbin | Typepaper cone |
| ID 133φ×550mm( length) | |
| Traverse length | 20inch（500mm） |
| Winding package | Max.φ640mm |
| Winding weight | Max. 120kg |
| Unwinding tension | early tension0.98-19.6N(100-2000gf) than shorter |
| control devicedancer roller tension system, PID control device | |
| Pressure | 39.2-98N(4000-12000gf) than shorter |
| Drive system | geared motor : 1.5kW Individual drive |
| Machine construction | 1 ,2 rows×1 line(one machine) |
| Air pressure | 0.5-0.6MPa(5-6kgf/cm2) |
| Electrical device | 3 phase,200/220V, 50/60HZ |
| ※Step-down Toransformer will be reguired when using the machines at the aria of Different power supply. |
|
